4 Wheel Drive 140HP Tractor 1604 - Image 2

4 Wheel Drive 140HP Tractor 1604 - Image 3

4 Wheel Drive 140HP Tractor 1604

The 160HP tractor is equipped with a 300L large main and auxiliary dual fuel tank, which can meet the needs of long-term continuous operations, reduce interruptions caused by frequent refueling, and significantly improve work efficiency. The braking system adopts a hydraulic disc brake design, featuring strong braking force and excellent anti-thermal fade performance. It can maintain stable braking effect even during long-term high-intensity braking, with simple and easy operation.

The internal transmission structure is optimized, including four-stage deceleration. The final drive adopts a double-cone and planetary reduction design, and the central transmission can be optionally equipped with a differential lock, making power transmission more efficient and reliable. The mid-mounted cylinder is paired with an independent oil circuit full hydraulic steering system, ensuring consistent left and right turning radii and a reasonably designed steering angle, enabling flexible and precise U-turns in the field. With a maximum load capacity of 2600KG, the machine body is sturdy and durable, with strong load-bearing capacity, and can be adapted to various heavy agricultural machinery.

The driving experience is significantly upgraded: the aviation-grade widened air-cushioned seat enhances comfort and safety; the hydraulic power-assisted clutch pedal reduces the burden on the driver’s feet, effectively alleviating fatigue during long-term operations; the side-mounted independent handbrake provides a stable parking effect, further ensuring operational safety. Meanwhile, it supports function expansion and can be optionally equipped with a limited-slip differential, making it more capable of handling complex terrains. It is a powerful equipment for large-scale farmland operations.

Model	QL1604F
Horsepower	160hp
Engine	6 cylinder engine
Wheel Drive	4×4
Dimension(L×W×H)	515023203210mm
Gear Shift	16F+8R Creeper Shift
Clutch	Dry type, Double stage
Tire	14.9-26/18.4-28
PTO	540/1000 or 760/1000
Weight	5500KG
Fuel Tank	246L/332L

140HP Tractor Overview

The 140-horsepower tractor is built for large-scale paddy and dry-field operations. It combines a flat-floor ROPS cab, mechanical suspension seat (air seat optional), and a choice of Quanchai, YTO, Yunnei or Xinchai engines. An extra diesel filter and cold-weather warm-up function guarantee reliable starts down to –20 °C.

Key Features & Google-Rich Snippets

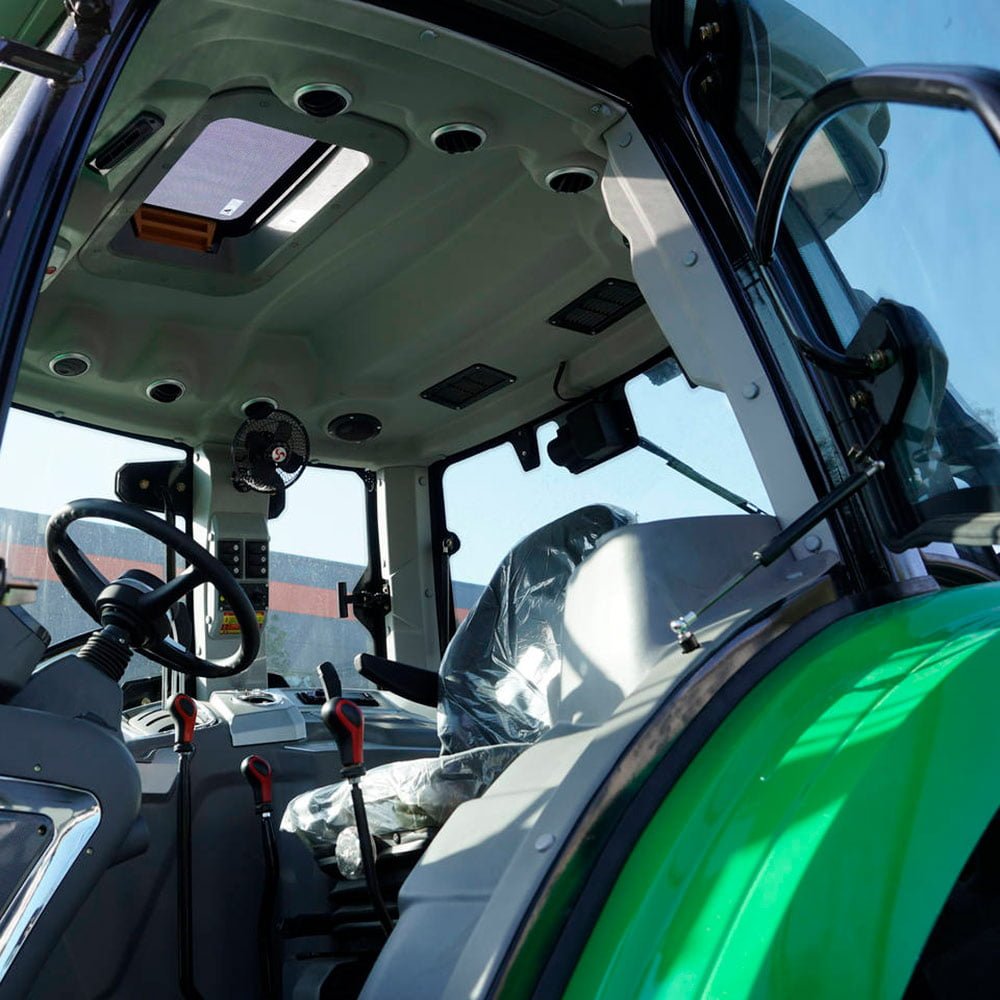

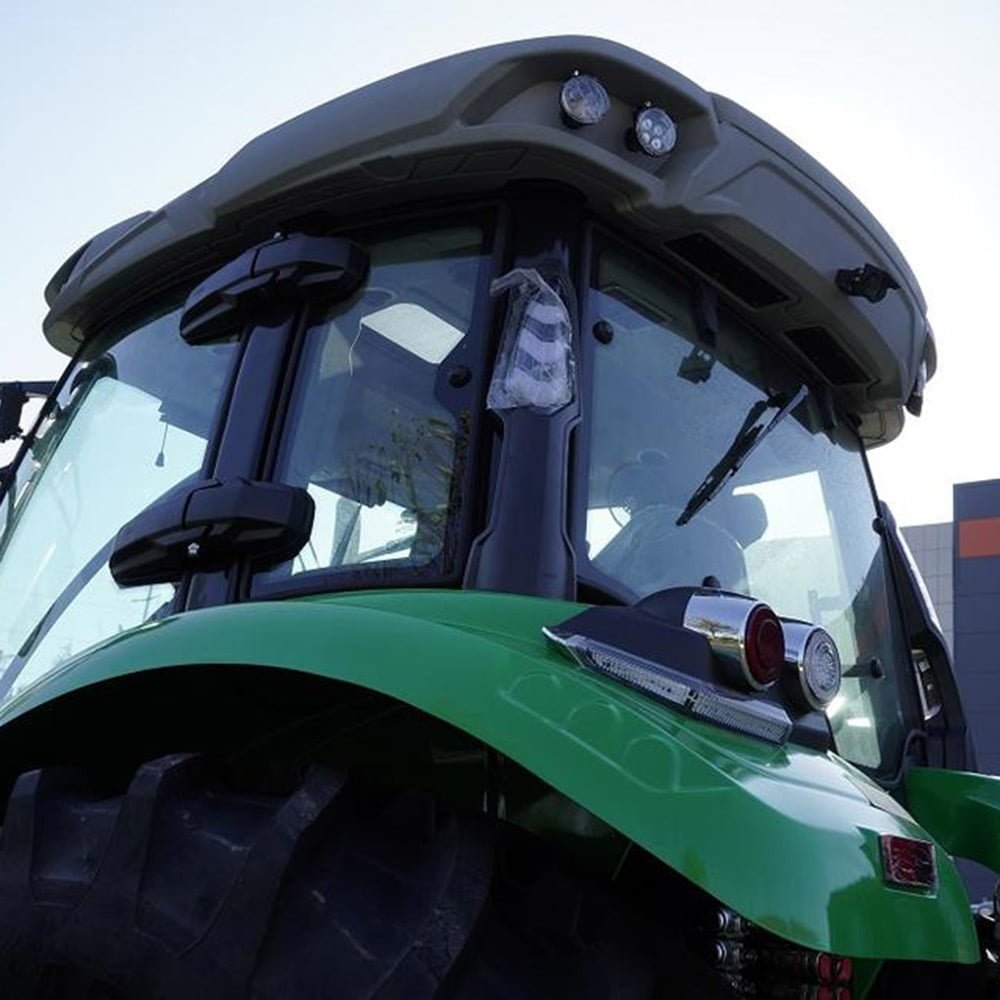

Flat-Floor ROPS Cab

30% more legroom than traditional designs

Certified rollover protection, optional canopy

Mechanical/Air Suspension Seat

Shock-absorbing travel up to 100 mm
150 kg driver weight range, all-day comfort

Multi-Brand 140 HP Engine

Euro II/III emission options
Extra water-separator + 10 μm diesel filter
5-minute block heater for sub-zero starts

High-Performance Front Axle

IP67 waterproof seal, paddy-ready
45°-50° steering angle, turning radius ≤ 4.3 m
Hydraulic hose linkage for 20% faster response

Farmland & Optional Radial Tires

14.9-28 / 18.4-38 bias-ply tires as standard

Radial or 12-ply engineering tires available

Optimized 1.6 speed ratio cuts slip by 12%

Technical Specifications (Schema-ready table)

Engine Power: 140 HP / 103 kW
PTO Speed: 540/1000 rpm (optional 760/1000)
Hydraulics: 3-point Cat II, 24 kN lift capacity
Steering: Hydrostatic, 45°-50° angle
Fuel Tank: 150 L (optional 180 L)
Weight: 4,050 kg (ballasted)
Dimensions: 4,550 × 2,180 × 2,780 mm

Why Choose Us

Located in Shandong, China’s largest agricultural machinery cluster
In-house R&D team, ISO 9001 & CE certified factory
Professional technicians provide 1-to-1 pre-sales consulting
Free spare parts in every shipment
12-month full-machine warranty, 24-hour online service, lifetime technical support
